Products

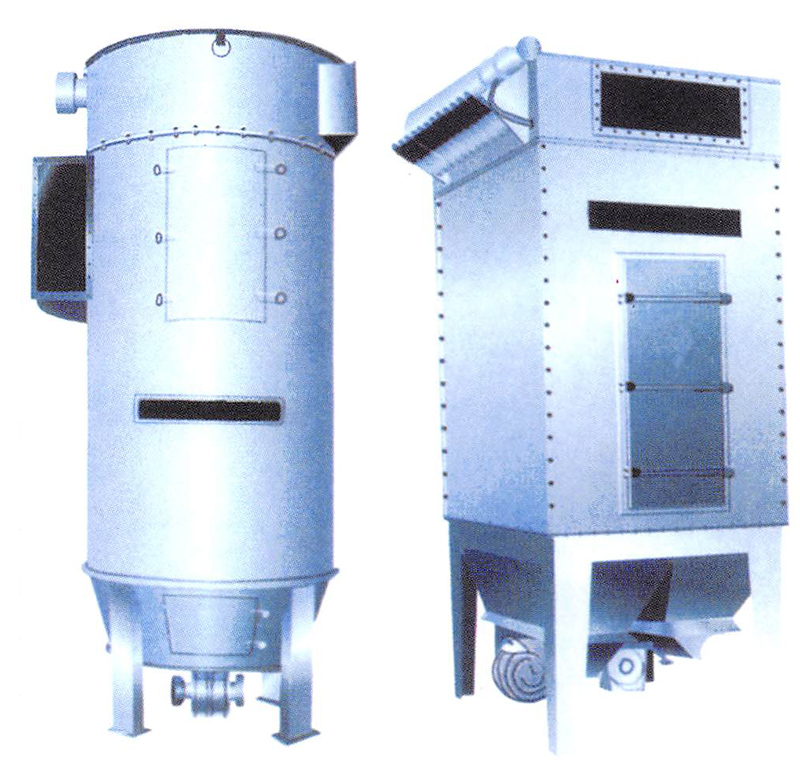

MC Series Pluse Filter With Hop-pocket

Descriptions
※ On the basis of MC- I type, the square type pulse dust filter with cloth bag MC-II is the amended and improved one. In addition to the advantages that type is high in the dust removing efficiency, big in the air capacity, stable in the performance, easy in operation and maintenance, MC-II has the better result than MC-I. Such as: it is not easy to build up the powder and its application is wide and so on. The device is widely used for the ventilation, dust removing and powder restoration in the grain, feed, metallurgical, chemical building material, medical and other industries.

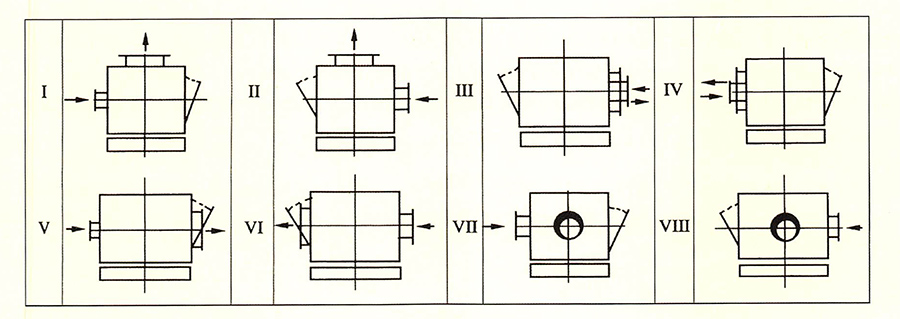

Sketch of oven

Technical parameters

parameters/model MC24 MC36 MC48 MC60 MC72 MC84 MC96 MC120
filtering area(m2) 18 27 36 45 54 63 72 90
filtering number 24 36 48 60 72 84 96 120
filtering air speed(m/min) 2-4 2-4 2-4 2-4 2-4 2-4 2-4 2-4
filtering air volume(m2/h) 2160-4300 3250-6480 4320-8630 5400-10800 6450-12900 7550-15100 8650-17300 10800-2080
Max.overall dimension
(mm)
long 1025 1425 1820 2225 2625 3025 3585 4385
wide*high 1678*3660
dust remover pulse valve number 4 6 8 10 12 14 16 20
compressed air consumption
(m2/min)
0.07-0.30 0.11-0.40 0.15-0.50 0.18-0.60 0.22-0.60 0.25-0.90 0.29-0.90 0.37-0.90
compressed air pressure (Mpa) 0.5-0.8
