Products

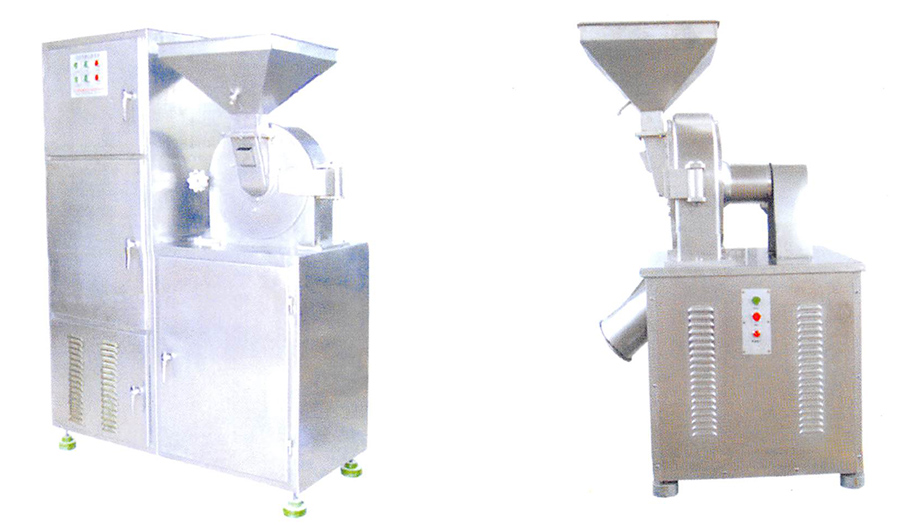

Model 30B Universal Grinder(With Cloth Bag)

Descriptions
※ The ginder set consists of model 30B grinder. ESC collector of raw material and ESC collective duster. It solves the problem, i.e. the dust is flying during the period of crushing raw material.
※ The principle of work is as follows: after raw material is fed into the crushing chamber, it undertakes the comprehensive actions such impacted by teeth, shearing force, friction force, impacted between raw matrials, finally the raw materials re crushed. The needed powder can be got.
※ The grinder, collector of raw material and ESC collective duster are made of stainless steel and in conforrnily with requirements of GMP.
※ 30C-C new development of the worm gear professional Chinese medicine crushing fineness of 40-250 head.

Technical parameters

model 20B-C 30B-C 40B-C 30C-C
productive capacity(kg/h) 60-150 100-300 160-800 100-300
speed of ma in shaft 4500 3800 3400 3800
productive capacity(kg/h) 6 10 12 10
diameter of movable teeth disc(mm) 60-120 60-120 60-120 40-250
size of grinding motor(kw) 4 5 5 11 5 5
power of dust-catching motor(kw) 1.5 1.5 1 5 1.5
overall dimensi013s(L×W×H)(mm) 1100×600×1 650 1200×650×1 650 1400×700×2310 1200×650×1650

Note: The output listed in the table will be different because of raw material,for reference only.
